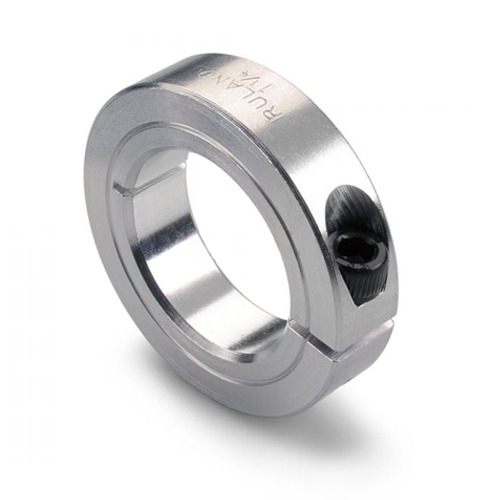

Ruland CL-14-A One-Piece Clamp Style Shaft Collar, Plain Bore; Bore Diameter 7/8 in (0.8750″); OD 1-5/8 in. (1.625″); Width 0.500″, Aluminum
| Weight | 0.08 lbs |
|---|---|
| Manufacturer | Ruland |
| Collar Type | One-Piece Clamp |
| Bore Type | Plain |
| Unit of Measurement | Inch |

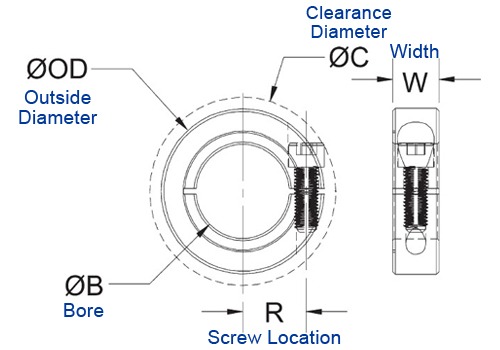

| Bore Diameter | 7/8" |
| Outside Diameter | 1-5/8" |
| Width | 0.500" |
| Material | Aluminum |
| Series | CL |
| Screw Size | 1/4-28 |
| Screw Location | 0.610" |
| Clearance Diameter | 1.916" |
| UPC | 63452900013 |
Ruland shaft collars are offered in multiple styles to fit shafts ranging from 1/8″ to 6″ in the inch series and 3mm to 80mm in the metric series, in a variety of materials and finishes.
Extra steps are taken in the manufacture of Ruland shaft collars to provide important performance benefits. For example, Ruland collars are single point faced (indicated by the circular groove on the face) during the boring operation to insure perpendicularity of the face to the bore. Perpendicularity is important for alignment when collars are used as a bearing face, a mechanical stop, or for mounting other components.

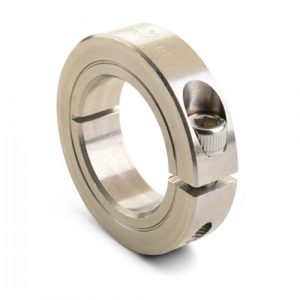

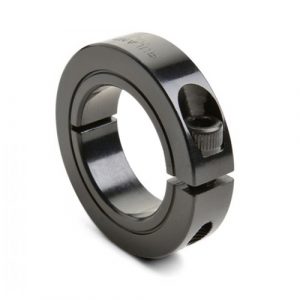

One-piece clamp style collars wrap around the shaft for even distribution of clamping forces. This results in a tight fit and greater holding power, without the shaft damage caused by set screws. Ruland uses carefully selected materials and proprietary processes to ensure that the clamping gap remains open for simpler and more precise adjustment, installation, and fit.
ISC Companies is a top distributor of power transmission and electrical parts. We have many different models and brands in stock for fast delivery. Our sales professionals are happy to assist you in the selection process to ensure the correct part is specified for your applications. Submit a quote request or give us a call at (800) 627-9434.
