KOCH Filter Multi-Pleat XL8 Mechanical MERV 8

Koch logo

MERV 8 Extended Surface Pleated Panel Filter with Mechanical Media

Multi-Pleat XL8 Mechanical MERV 8

The Koch Multi-Pleat XL8 is a medium efficiency extended surface pleated panel filter, engineered to provide higher initial efficiencies and overall superior performance than standard pleated filters. The Multi-Pleat XL8 carries a MERV 8 and MERV-A 8 performance rating in accordance with ASHRAE Test Standard 52.2-2007.

The MERV 8 and MERV-A 8 performance rating provided by the Multi-Pleat XL8 make the filter an excellent upgrade from disposable filters and standard MERV 6 and 7 rated pleated filters. The Multi-Pleat XL8 is the best selection in applications such as hospitals, laboratories, pharmaceutical plants, commercial office buildings, and in any system in which a higher degree of indoor air quality is required.

Multi-Pleat XL8 Construction

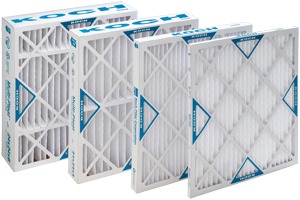

Koch XL8 Filters

The Multi-Pleat XL8 media is produced with an optimal blend of highly specialized fibers, developed by Koch Filter specifically for use in extended surface air filters. Developed to deliver a “one of a kind” performance, this specialized media operates on mechanical filtration principles which provide high efficiency, low pressure drop and high dust holding capacity. The Koch Multi-Pleat XL8 maintains a MERV 8 performance rating before and after conditioning steps when tested in accordance to ASHRAE Test Standard 52.2-2007 and 52.2-2007 Appendix J.

Two Media Area Capacity Levels

Standard Capacity XL8-SC filters provide a combination of efficiency, economy, and excellent overall performance. Standard Capacity XL8 filters are an excellent choice in applications where filter change schedules are based on preventive maintenance schedules.

High Capacity XL8-HC filters are similar in construction to the Standard Capacity but have the added advantage of approximately 30% more media. The additional media results in extended filter life, making the XL8-HC the ideal filter for use in filtration systems where filter change schedules are predicated on recommended final pressure drop readings.

Features

  • Upgrade from standard pleated filter
  • MERV 8 and MERV A8 performance rating
  • Mechanical MERV 8 media is not reliant on electrostatic charge for efficiency
  • Low resistance to airflow
  • High dust holding capacity
  • Sturdy double-wall frame design
  • Moisture resistant beverage board frame
  • Standard and high capacity models
  • Available in 1”, 2”, 4” and 6” depths

Koch Multi-Pleat XL8 Technical Data Table
