NEW! GYLON EPIX PTFE Gasketing from Garlock

GYLON EPIX Style 3504The Perfect Solution for Imperfect Flanges

The all-new patented GYLON EPIX looks like no other gasket because it’s not like any other gasket. Its patented hexagonal surface profile combines best-in-class torque retention with exceptional conformability, allowing you to use a single thickness for nearly any application—even worn or pitted flanges.

Why Gaskets Fail

Incorrect bolt load accounts for 83% of gasket failures. GYLON EPIX helps overcome these challenges, so that even when bolt load isn’t perfect, performance isn’t compromised.

Product Highlights

Inventory Simplification

One universal thickness—3/32″ (2.4mm)—eliminates the need to stock a variety of material thickness with different stress requirements.

Improved Load Retention

The hexagonal surface profile provides the torque retention and blowout resistance of a thin gasket and the conformability of a thicker gasket.

Trusted Materials

Made from the same materials as standard GYLON products, it eliminates the need for most customers to qualify the new GYLON EPIX products.

See what makes the GYLON EPIX gasket different from everything that has come before it.

Which is the right GYLON EPIX style for you?

Style 3510 EPX

Style 3510 EPX

PTFE with Barium Sulfate Fillers

Style 3510 EPX is designed for use in strong caustics and moderate acids where an extremely tight seal is critical.

Key Features

  • Color: Off-white
  • One thickness does the job of two
    Seal performance and load retention equal of 1/16”
  • Compressibility and forgiveness/conformability of 1/8”
  • Patented hex profile creates superb sealing and ability to conform to imperfect flange surfaces
  • Same material as traditional GYLON

Typical Application

  • Strong caustics
  • Moderate acids
  • Chlorine
  • Gases
  • Monomers
  • Steam
  • Hydrocarbons
  • Cryogenics and aluminum fluoride

Style 3500 EPX

PTFE with Silica Filler

Style 3500 EPX is a high performance, silica filled PTFE sheet material designed for use with strong acids, solvents, hydrocarbons, and other aggressive media.

Key Features

  • Color: Fawn
  • One thickness does the job of two
    Seal performance and load retention equal of 1/16”
  • Compressibility and forgiveness/conformability of 1/8”
  • Patented hex profile creates superb sealing and ability to conform to imperfect flange surfaces
  • Same material as traditional GYLON

Typical Application

  • Strong acids (except hydrofluoric acid)
  • Solvents
  • Hydrocarbons
  • Water
  • Steam
  • Chlorine
  • Cryogenics

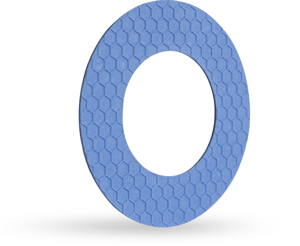

Style 3504 EPX

Style 3504 EPX

PTFE with Aluminosilicate Microspheres

Style 3504 EPX is made of PTFE with aluminosilicate microspheres. It is designed for use in moderate concentrations of acids, caustics, hydrocarbons, refrigerants, and more.

Key Features

  • Color: Blue
  • One thickness does the job of two
  • Seal performance and load retention equal of 1/16”
  • Compressibility and forgiveness/conformability of 1/8”
  • Patented hex profile creates superb sealing and ability to conform to imperfect flange surfaces
  • Same material as traditional GYLON

Typical Application

  • Moderate concentrations of acids and some caustics
  • Hydrocarbons
  • Solvents
  • Water
  • Refrigerants
  • Cryogenics
  • Hydrogen peroxide
